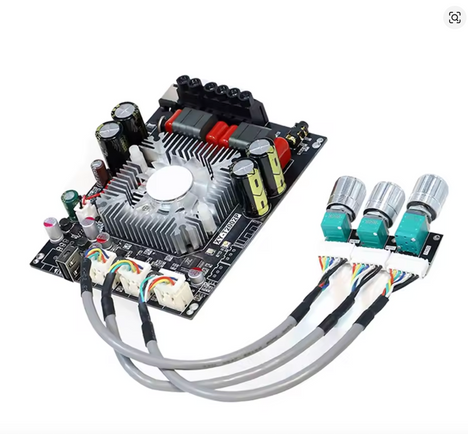

XY-T2002P Bluetooth Digital Audio Amplifier Board High Power Stereo 200W*2 Amplifier Module TPA3223 Amplifier Board
Rs. 2,899.00
Availability: In Stock
SKU : XY-t2002p
Quick OverView
Product features:1. High performance TPA3223 chip: using the high-end TPA3223 chip, supporting lossless component sound quality, providing a...
Qty:
-
Product features:
1. High performance TPA3223 chip: using the high-end TPA3223 chip, supporting lossless component sound quality, providing a clearer and more delicate audio experience.
2. Multi functional volume knob: Integrated with multiple operation functions, click pause/play, double-click next track, triple tap previous track, quadruple tap switch mode, long press power on/off, easy and efficient operation.
3. High power output design: Supports up to 200W × 2 output power, adapts to different voltage requirements (DC12-42V), meets multi scenario applications from 10W to 200W, and has stunning sound effects.
4. Multiple audio input methods: Supports multiple input methods such as Bluetooth 5.2, AUX, USB flash drive, USB sound card, etc., compatible with lossless formats such as WAV, FLAC, APE, etc., meeting diverse audio source needs.
5. High quality component selection: Equipped with digital amplifier specific low loss inductors, large capacity black gold capacitors, and metal film capacitors to ensure stable and efficient audio performance, resulting in purer sound quality.
Product parameters:
Product Name: Bluetooth Digital Audio Amplifier Board
Product model: T2002P
Power supply: DC12-42V/5A or above
Bluetooth version: 5.2
Audio input: Bluetooth/AUX/U disk/USB sound card
Bluetooth audio decoding: AACSBC
USB lossless decoding: WAV FLAC APE MP3
Left and right channel output power:
10W+10W @8Ω/12VDC
20W+20W @4Ω/12VDC
35W+35W @8Ω/24VDC
70W+70W @4Ω/24VDC
80W+80W @8Ω/36VDC
160W+ 160W@4 Ω/36VDC
100W+ 100W@8 Ω/42VDC
200W+ 200W@4 Ω/42VDC
