2x100W Dual-Channel Audio Processing Module Compatible with DC9-30V Power Sources and Supporting Digital Tuning
Rs. 1,999.00
Availability: In Stock
SKU : DSP-CS8736E
Quick OverView
Audio ic - CS8736E Features: 1. Voltage Input: Supports DC 9-30V power supply, flexibly compatible with various power sources. 2. High Power Output: Dual-channel design,...
Qty:
Audio ic - CS8736E
Features:
1. Voltage Input: Supports DC 9-30V power supply, flexibly compatible with various power sources.
2. High Power Output: Dual-channel design, for peak power up to 2x100W, delivering an immersive audio experience.
3. Wireless Connectivity: Supports wireless pairing and allows for customized audio adjustments via a dedicated app.
4. Wide Compatibility: Works with speakers of varying impedances and power outputs, providing diverse setup options.
5. Multi-Scenario Applications: Suitable for home audio systems, desktop speakers, outdoor audio systems, and DIY audio projects.
Specifications:

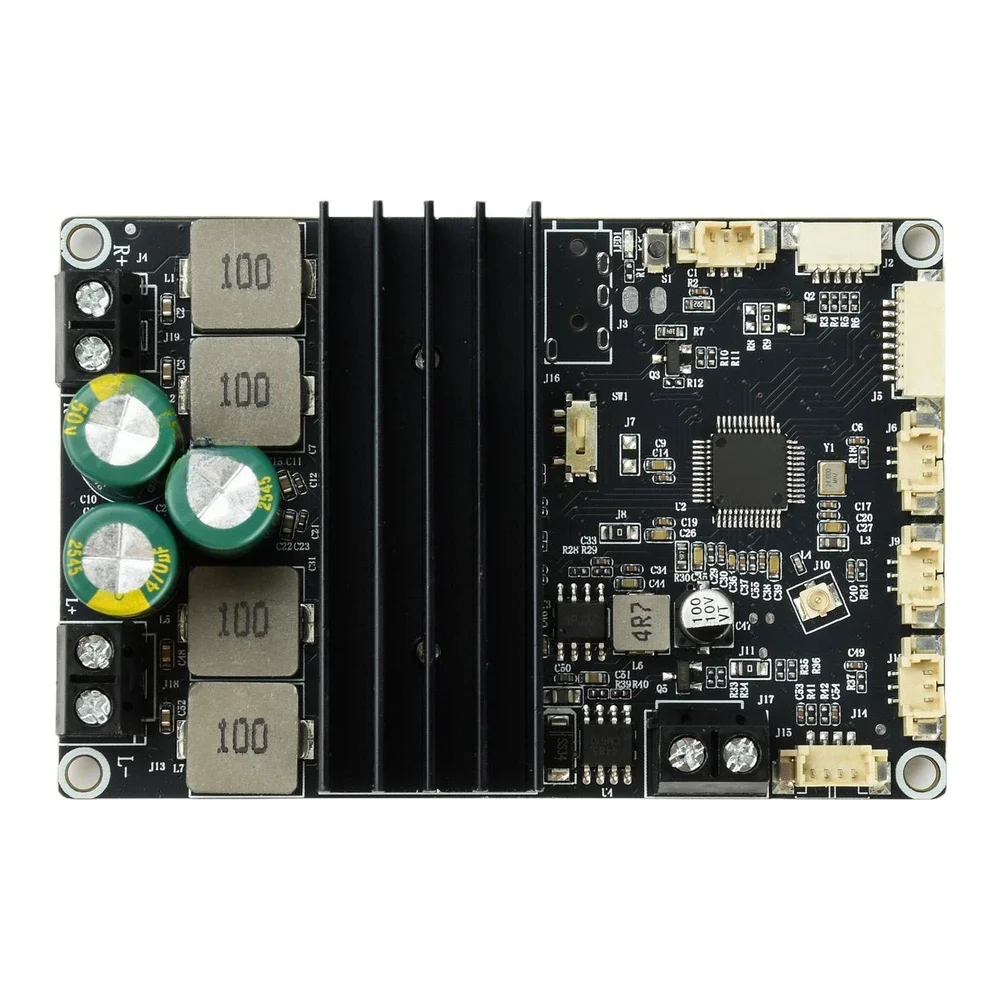

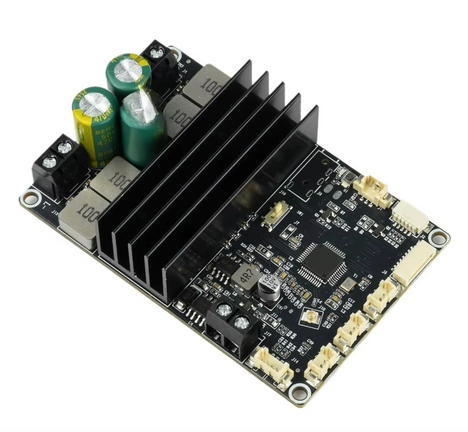

Part Name: Audio processing Board
Material: ABS
Color: Black

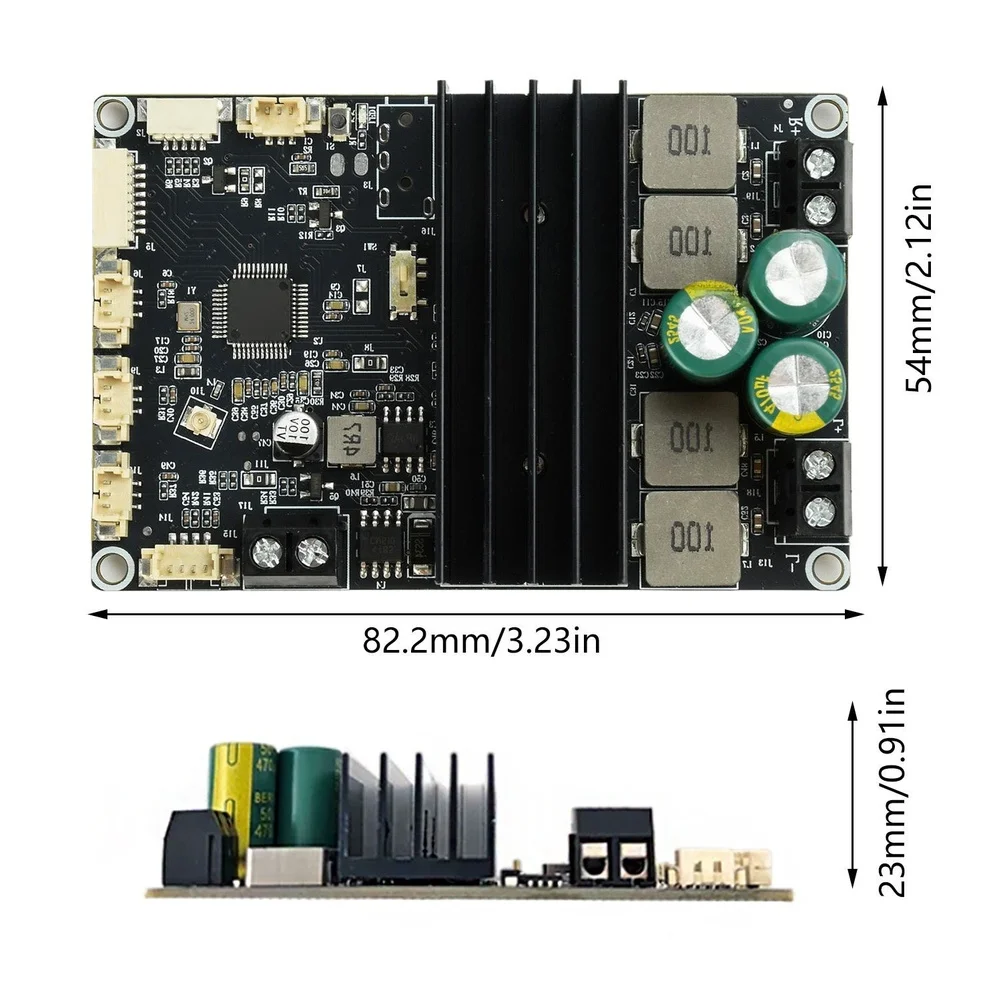

Size: 8.22*5.4*2.3 cm
12V power supply recommended, 4A or greater; can be used to build a speaker with a sound power of up to 2*15.
16.8V: A power supply of 5A or greater is recommended. This can be used to build a speaker for system with a sound power of up to 2 x 35.
21V: A power supply of 10A or greater is recommended. This can be used to build a speaker for system with a sound power of up to 2 x 60.
24V: A power supply of 10A or greater is recommended. This can be used to build a speaker for system with a sound power of up to 2 x 70.
32V: A power supply of 10A or greater is recommended. This can be used to build a speaker for system with a sound power of up to 2 x 100.
Package Contents:
1 * Module
