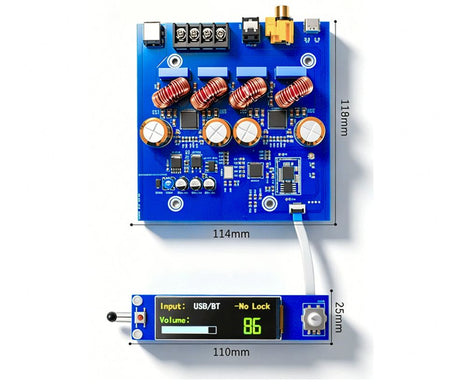

A816 Dual-Chip ACM8816 High-Power GaN Digital Bluetooth Amplifier Board – Audiophile-Grade Remote-Controlled Decoding Amplifier 300w+300w on 48V DC
Rs. 7,999.00
Availability: In Stock
SKU : IOT-A816
Quick OverView
Instructions for UseSpeaker Compatibility: The output of the amplifier board can only be connected to passive speakers. Do not connect it to active speakers or...
Qty:
Instructions for Use
Speaker Compatibility: The output of the amplifier board can only be connected to passive speakers. Do not connect it to active speakers or constant-voltage speakers.
Power Supply Requirements: The amplifier board operates on a DC 24V–48V power supply. Higher voltage results in higher output power, but the voltage must not exceed 48V, otherwise, the amplifier will burn out. The required power plug size is 5.5 × 2.5 mm, with a center-positive and outer-negative polarity.
Operation & Controls:
Powering On: When connected to power for the first time, the screen will light up and the device will turn on automatically.
Volume & Input: Turn the encoder knob directly to adjust the volume. Short-press the knob to switch between input sources (alternatively, using the remote control is more convenient).
Buttons: Short-press the left button to mute. Long-press the left button to enter standby mode, and long-press it again to power the device back on.
Wiring Warning: The negative terminals (-) of the left and right audio output channels must not be connected together, otherwise, it will cause the amplifier to burn out.
Bluetooth Mode: To use Bluetooth, switch the input source to USB/BT. Search for the Bluetooth device named "YJCO-QCC3084" on your phone and connect to play audio.
USB Audio Mode: * To use USB playback, switch the input source to USB/BT mode.
The USB input can be connected directly to a computer or a smartphone for plug-and-play audio (no driver installation needed).
When connecting a phone via OTG, you must use a proper OTG cable; a standard charging cable will not work.
Note: This USB port cannot read USB flash drives (U-disks) directly.
