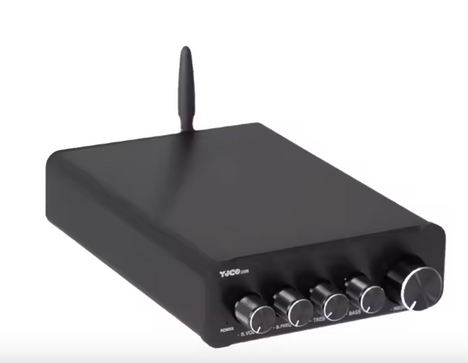

D3S dual-core TPA3255 high-power 2.1 digital HIFI amplifier with QCC3034 Bluetooth 5.4 decoding and APTX LDAC support
Rs. 9,599.00
Availability: In Stock
SKU : IOT-D3S
Quick OverView
1. The power supply voltage for D3S is DC24V - DC48V. It is recommended to use a current of 7.5A or more...
Qty:
1. The power supply voltage for D3S is DC24V - DC48V. It is recommended to use a current of 7.5A or more with a voltage of 42V. The voltage should not exceed 48V; otherwise, the machine will be damaged.
2. The DC power socket specification is 5.5*2.5, with the positive pole inside and the negative pole outside.
Parameter:
1.Bluetooth version: 5.2 (without sunscreen, 15 meters)
2.Output channel: 2.1 channel
3.Chip model: TPA3255*2
1.Working mode: class D
2.Static current: 60mA
3.Work efficiency: 90%
4.Audio input: support bluetooth, RCA analog signal
5.MAX output power : 300W*2+600W
6.Frequency response: 20Hz to 20KHz
7.Working voltage: DC24V - 48V
8.Recommended power voltage: DC24~48V
9.Fit speaker parameters: 4-8 ohms
10.Size: 165mm * 125mm * 40mm
11.Net weight: about 750g
